Swing Science

•
•
•
•
•

S400

The S 400 iron compliments the S Square 400 driver by providing the fitter the ability to customize trajectory in a high MOI design. Weight ports allow for the clubmaker to dial-in the sweet spot during the fitting process by placing weight where the golfer needs it most.

Product Highlights

• 431-1 Face and Hosel for easier loft and lie adjustability and great feel.

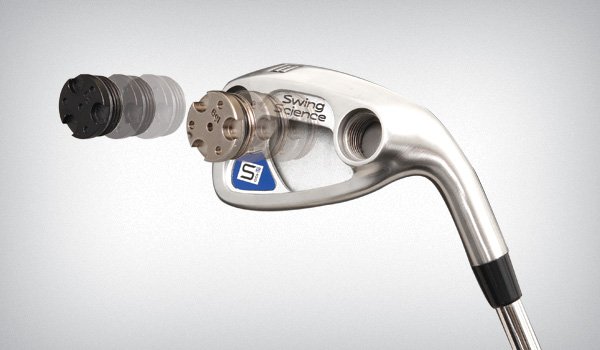

• Adjustable weight ports allow the clubmaker to achieve either a fade, draw or neutral set up.
• Optional weights are available to dial in swing weights for shorter or longer club lengths.
• Deep under cut cavity for low center of gravity.
• Weight distribution with weight ports at toe and heel increases MOI of iron for better accuracy.

Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing
Iron	Loft	Lie	Weight	Offset	Bounce	Length	Swing

Dimensions

Inside Diameter: 9.45mm

Outside Diameter: 13.6mm

Hosel Length: 60mm

Bore Depth: 35mm

Blade length: 81.5mm

Sole Width: 19.2mm

Toe Height: 48.6mm

Heel Height: 29mm

Materials & Finish

Construction: 2 Piece Cast

Face: 431-1 Stainless Steel

Body: 431-1 Stainless Steel

Finish: Brushed Satin
