Shafts

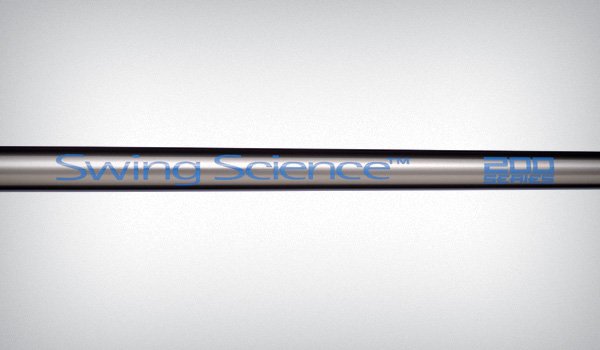

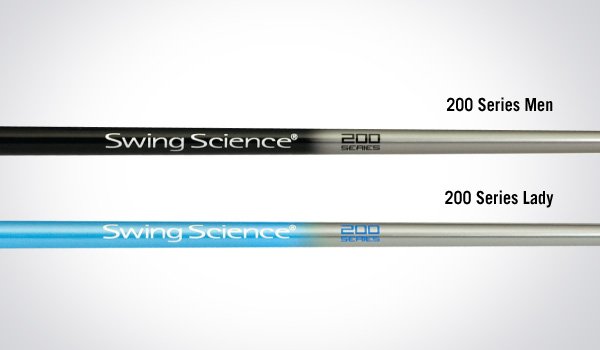

200 Series
The most popular of our Swing Science shafts, the 200 Series offers a full flex range in both woods and irons. Featuring a light weight design with a low flex point, the 200 Series generates high launch ball flight characteristics with exceptional feedback for the golfer. A filament wound design insures excellent wall symmetry and superb impact repeatability.
Frequency builders will appreciate the consistency of this product particularly in the irons. Black and silver cosmetics make this shaft an excellent choice with most club head designs making the 200 Series an absolute winner in price, performance and aesthetics.
| Club | Type | Flex | Launch | TQ | Weight | Butt | Tip | Length |
|---|---|---|---|---|---|---|---|---|
| 200 IL | Iron | L | High | 3.5 | 70g | .600″ | .370″ | 40″ |
| 200 IA | Iron | A | High | 3.5 | 70g | .600″ | .370″ | 40″ |
| 200 IR | Iron | R | High | 3.5 | 70g | .600″ | .370″ | 40″ |
| 200 IS | Iron | S | High | 3.5 | 70g | .600″ | .370″ | 40″ |
| 200 WL | Wood | L | High | 4.5 | 70g | .600″ | .335″ | 46″ |
| 200 WA | Wood | A | High | 4.5 | 70g | .600″ | .335″ | 46″ |
| 200 WR | Wood | R | High | 4.5 | 70g | .600″ | .335″ | 46″ |
| 200 WS | Wood | S | High | 4.5 | 70g | .600″ | .335″ | 46″ |
400 Series Woods
Looking for a responsive mid launch wood shaft, then look no further. Our 400 Series ultralite wood shaft was designed for the above average golfer who needs moderate assistant in generating spin off the tee box. Filament wound construction insures excellent wall symmetry resulting in impact repeatability which translates into more fairways hit.
400 Series Irons
Our new 400 Series MultiFlex composite shaft technology will deliver 50 full flex increments from a series of three specially designed iron shafts. Following the Professional Clubmakers Society flex conventions, you can build from a 2.5 all the way up to a 7.5.
Featuring filament wound construction, the new 400 Series provides exceptional concentricity for superb impact repeatability. Add in the consistency of a filament wound design and you have the ideal shaft for frequency matching. The mirror chrome finish with the midnight blue logo makes this shaft look as great as it feels!
| Club | Type | Flex | Launch | TQ | Weight | Butt | Tip | Length |
|---|---|---|---|---|---|---|---|---|
| Technical Note: All 400 Series Iron Shafts exhibit a CPM tolerance of ± 2 CPM | ||||||||
| 400 WA | Wood | A | Mid | 4.0 | 65g | .600″ | .335″ | 46″ |
| 400 WR | Wood | R | Mid | 4.0 | 65g | .600″ | .335″ | 46″ |
| 400 WS | Wood | S | Mid | 4.0 | 65g | .600″ | .335″ | 46″ |
| 400 ILAR | Iron | LAR | Mid | 3.5 | 80g | .600″ | .370″ | 44″ |
| 400 IARS | Iron | ARS | Mid | 3.5 | 80g | .600″ | .370″ | 44″ |
| 400 IRSX | Iron | RSX | Mid | 3.5 | 80g | .600″ | .370″ | 44″ |
Matching Items
The 44″ raw length combined with the 8″ parallel tip section not only makes these shafts technically superior for frequency matching sets of irons, but the ideal hybrid shaft as well providing unlimited trimming options to optimize launch.

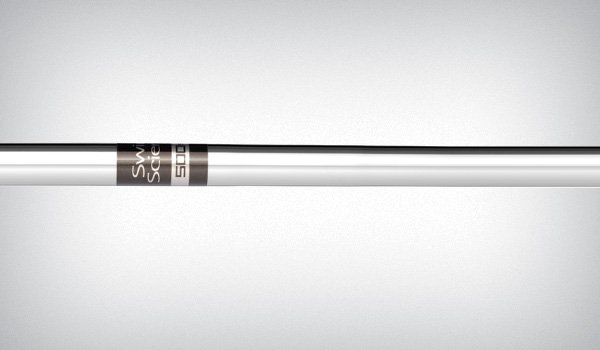

500 Series Irons
Our 500 Series MultiFlex steel shaft technology will deliver 20 full flex increments from a specially engineered master shaft. Following the Professional Clubmakers Society flex conventions, you can build from a 2.5 all the way up to a 4.5 with our proprietary shaft system.
What’s more, all this will be achieved at less than 90 grams of total weight for most shafts cut to playing length. Using a super light weight alloy and a unique shallow angle step pattern, the 500 Series is the ideal shaft for players transitioning from heavy weight steel into a lighter weight technology without sacrificing dispersion control with their iron play.
| Club | Type | Flex | Launch | TQ | Weight | Butt | Tip | Length |
|---|---|---|---|---|---|---|---|---|
| 500 ILAR | Iron | LAR | Mid/High | 2.0 | 100g | .600″ | .370″ | 42″ |
Matching Items
The 44″ raw length combined with the 8″ parallel tip section not only makes these shafts technically superior for frequency matching sets of irons, but the ideal hybrid shaft as well providing unlimited trimming options to optimize launch.
800 Series Woods
A high performance driver shaft without the high performance price tag. Featuring a filament wound constant taper design, the 800 Series was designed for stronger players looking for the optimum balance between, power, control and feel. Recommended for driver use only, the 800 Series will generate a lower launch and minimal spin rates.
800 Series Irons
The big brother to the 400 Series iron shaft, the 800 Series iron weighs in at 20 grams more total shaft weight for harder swingers who prefer the shock absorption of graphite and the dispersion control of steel.
Using MultiFlex composite shaft technology, the 800 Series iron will deliver 40 full flex increments from a series of three iron shafts at the stronger side of the flex scale yielding PCS flex conventions from 4.0 all the way up to 8.0.
| Club | Type | Flex | Launch | TQ | Weight | Butt | Tip | Length |
|---|---|---|---|---|---|---|---|---|
| Technical Note: All 800 Series Iron Shafts exhibit a CPM tolerance of ± 1 CPM | ||||||||
| 800 WR | Wood | R | Low | 3.0 | 65g | .630″ | .335″ | 46″ |
| 800 WS | Wood | S | Low | 3.0 | 65g | .630″ | .335″ | 46″ |
| 800 IAR | Iron | AR | Low/Mid | 3.0 | 100g | .605″ | .370″ | 44″ |
| 800 IRS | Iron | RS | Low/Mid | 3.0 | 100g | .605″ | .370″ | 44″ |
| 800 ISX | Iron | SX | Low/Mid | 3.0 | 100g | .605″ | .370″ | 44″ |
Matching Items
The 44″ raw length combined with the 8″ parallel tip section not only makes these shafts technically superior for frequency matching sets of irons, but the ideal hybrid shaft as well providing unlimited trimming options to optimize launch.

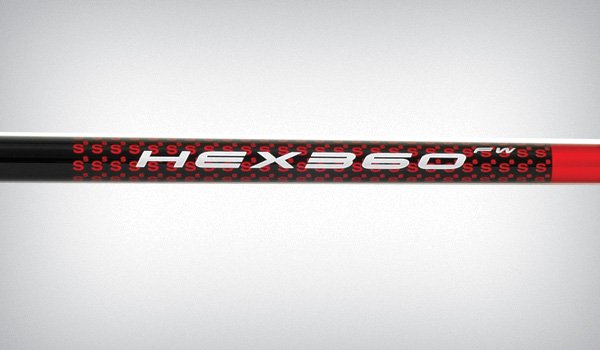

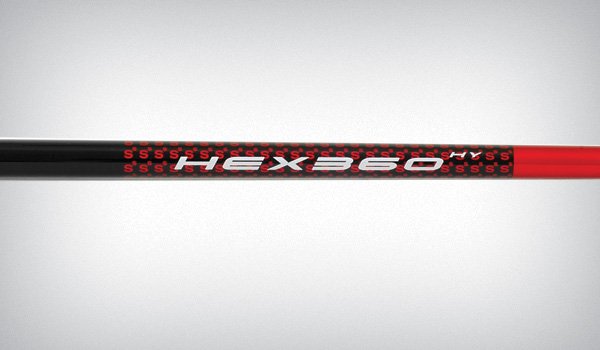

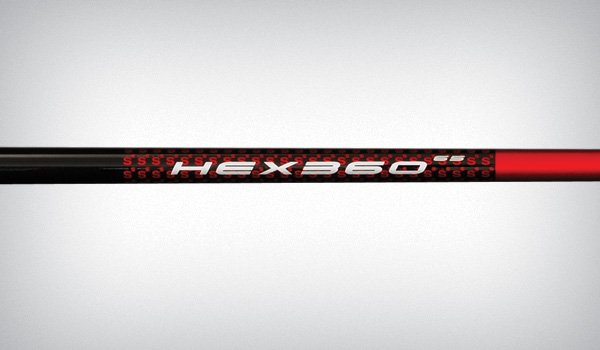

HEX 360
Swing Science is pleased to introduce its brand new HEX 360 high performance wood shaft. Using a 360 degree hexagon sheet wrapping process, our engineers were able to create a highly uniform wall structure for added consistency. In addition, the HEX 360 has a reinforced butt section using a filament winding braiding technique which adds strength and stability under the hands reducing shaft deformation during the down swing. The result is a highly responsive wood shaft that lends itself to both feel and control.
| Club | Type | Flex | Launch | TQ | Weight | Butt | Tip | Length |
|---|---|---|---|---|---|---|---|---|
| HEX 360 55 | Wood | Multi | High | 4.5 | 60g | .585″ | .335″ | 47″ |
| HEX 360 65 | Wood | Multi | Mid/High | 4.0 | 65g | .600″ | .335″ | 47″ |
| HEX 360 75 | Wood | Multi | Mid | 3.5 | 75g | .610″ | .335″ | 47″ |
| HEX 360 FWA | Wood | A | Mid | 3.5 | 70g | .605″ | .335″ | 44″ |
| HEX 360 FWR | Wood | R | Mid | 3.5 | 70g | .605″ | .335″ | 44″ |
| HEX 360 FWS | Wood | S | Mid | 3.5 | 70g | .605″ | .335″ | 44″ |
| HEX 360 HYA | Hybrid | A | Mid | 3.0 | 80g | .605″ | .370″ | 41″ |
| HEX 360 HYR | Hybrid | R | Mid | 3.0 | 80g | .605″ | .370″ | 41″ |
| HEX 360 HYS | Hybrid | S | Mid | 3.0 | 80g | .605″ | .370″ | 41″ |
